Rod Pendulum with Angle Sensor

Rod Pendulum with Angle Sensor, 1000763 [U8404275-230], Oscillations
Rod Pendulum with Angle Sensor, 1000763 [U8404275-230], Oscillations
Rod Pendulum with Angle Sensor, 1000763 [U8404275-230], Oscillations
Rod Pendulum with Angle Sensor, 1000763 [U8404275-230], Oscillations
Rod Pendulum with Angle Sensor, 1000763 [U8404275-230], Oscillations
Rod Pendulum with Angle Sensor, 1000763 [U8404275-230], Oscillations
Rod Pendulum with Angle Sensor, 1000763 [U8404275-230], Oscillations

Voltage:

115V, 50/60 Hz
230V, 50/60 Hz
Overview of all experiments in which the product is used
Application: ..

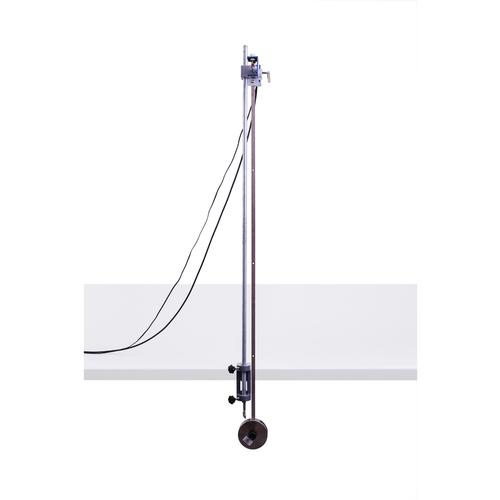

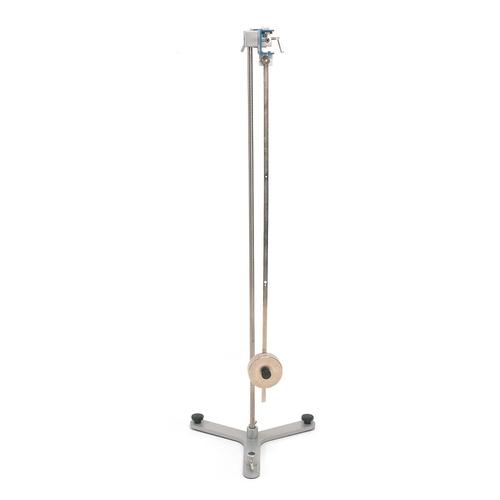

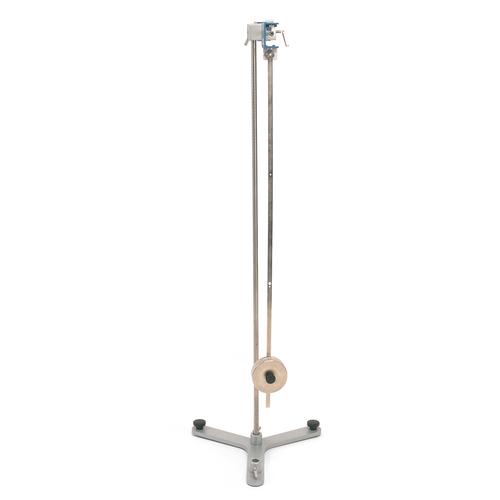

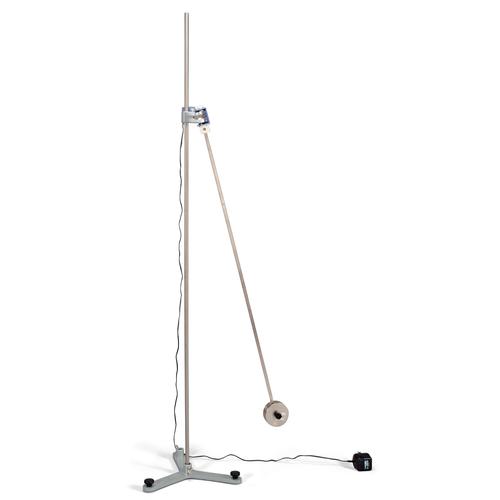

Pendulum with low-friction pointed bearings and electro-magnetic angle sensor for measuring simple harmonic motion and coupled oscillations of a weighted pendulum with movable weight.
With adjustable pendulum mass.

Product Information: ..
The deflection of the pendulum is detected by a Hall sensor that converts the angle to an electrical signal proportional to the angle so that the oscillation can be recorded using an interface unit, a Y-t plotter or a storage oscilloscope.

Specifications: ..
Mains voltage:.. 230 V ±10% (50/60 Hz)..
Length of pendulum:  1000 mm
Mass of pendulum:  1000 g
Output voltage: ±5 V
Output resistance: 500 Ω
Power supply:  12 V AC
Diameter of tube: 10 mm
Weight: 1,4 kg approx.

Notes: ..
Stand equipment not included.
