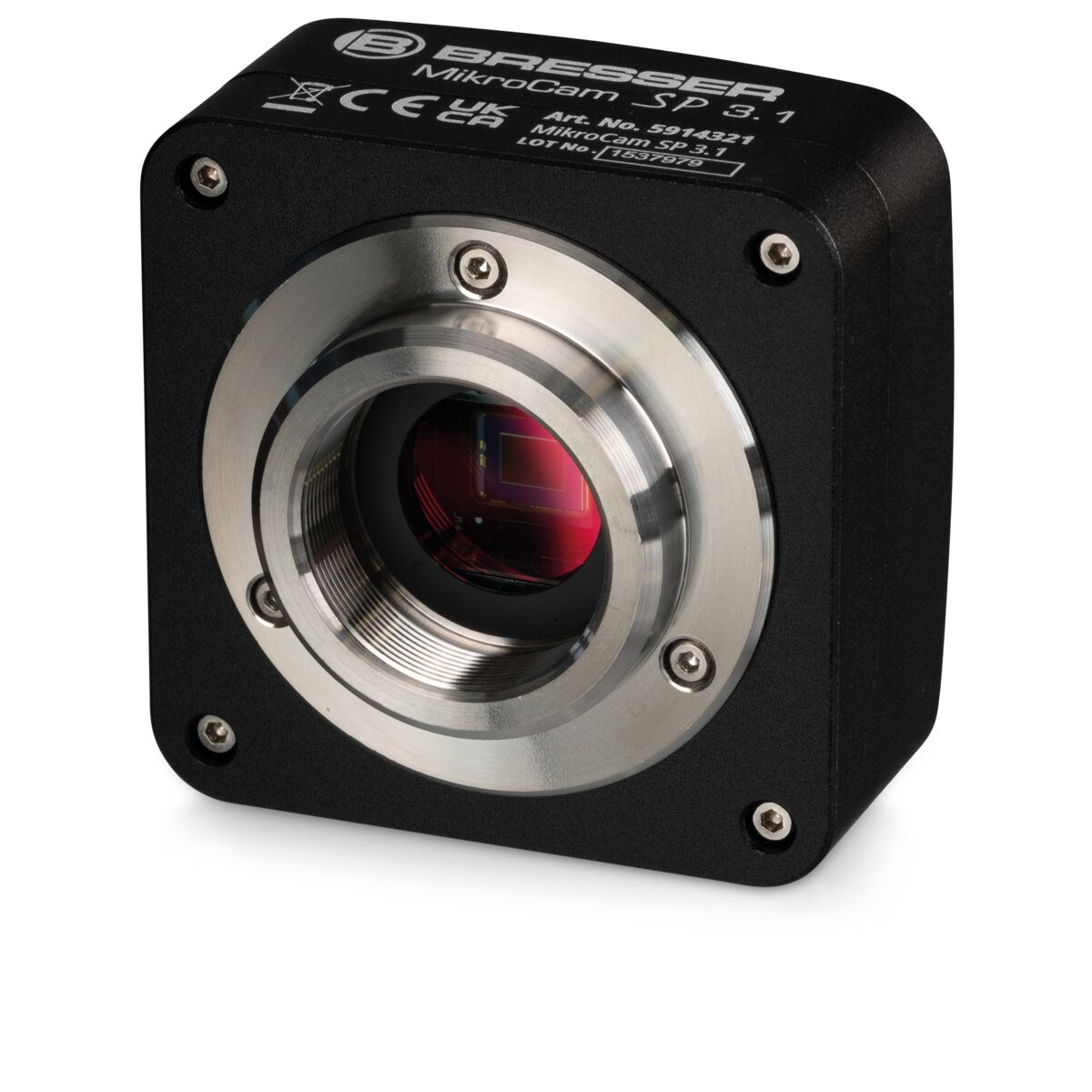

BRESSER MikroCam SP 3.1 Microscope Camera with high-quality metal housing
The BRESSER MikroCam SP microscope cameras help to make photos and videos with a microscope very easy.

Resolution: 2048 x 1536 pixels
C-mount thread for easy adaptability
Adapters: 23.2mm, 30mm und 30.5mm
Professional software
Scope of delivery: camera/cable/adapters/software

The modern CMOS sensors give brilliant colors with very low noise and is the perfect choice for any application where true natural colors are important. The included imaging software has multiple adjustments for the capture of still images and videos.
The integrated measuring* routine allows for a measurement in the camera live image. The software can be operated in the following languages: German, English, French, Polish, Russian, Turkish, Chinese.
The camera housing includes the c-mount adapter thread. For use with 23,2mm adaptations, we recommend the optional, variable 0,5x reducer (manufacturer art. no.5914005). For special applications the camera can also be mounted using the 1/4” camera tripod thread.
FEATURES

2048 x 1536 Pixel Sensor 6,55 mm x 4,92 mm (1/2'')
High quality metal housing
Numerous software functions, e.g. measurement, focus-stacking (combines several images for more depth of focus), mosaic (for larger image fields)
Image and video capture, incl. time lapse function
Good compatibility with different microscopes

SYSTEM REQUIREMENTS

Windows 8.1, 10 or 11
Intel i3, i5, i7 or i9 CPU from the 6nd generation or
AMD Ryzen CPU
Optical Disk Drive or internet connection for software download
USB 2.0

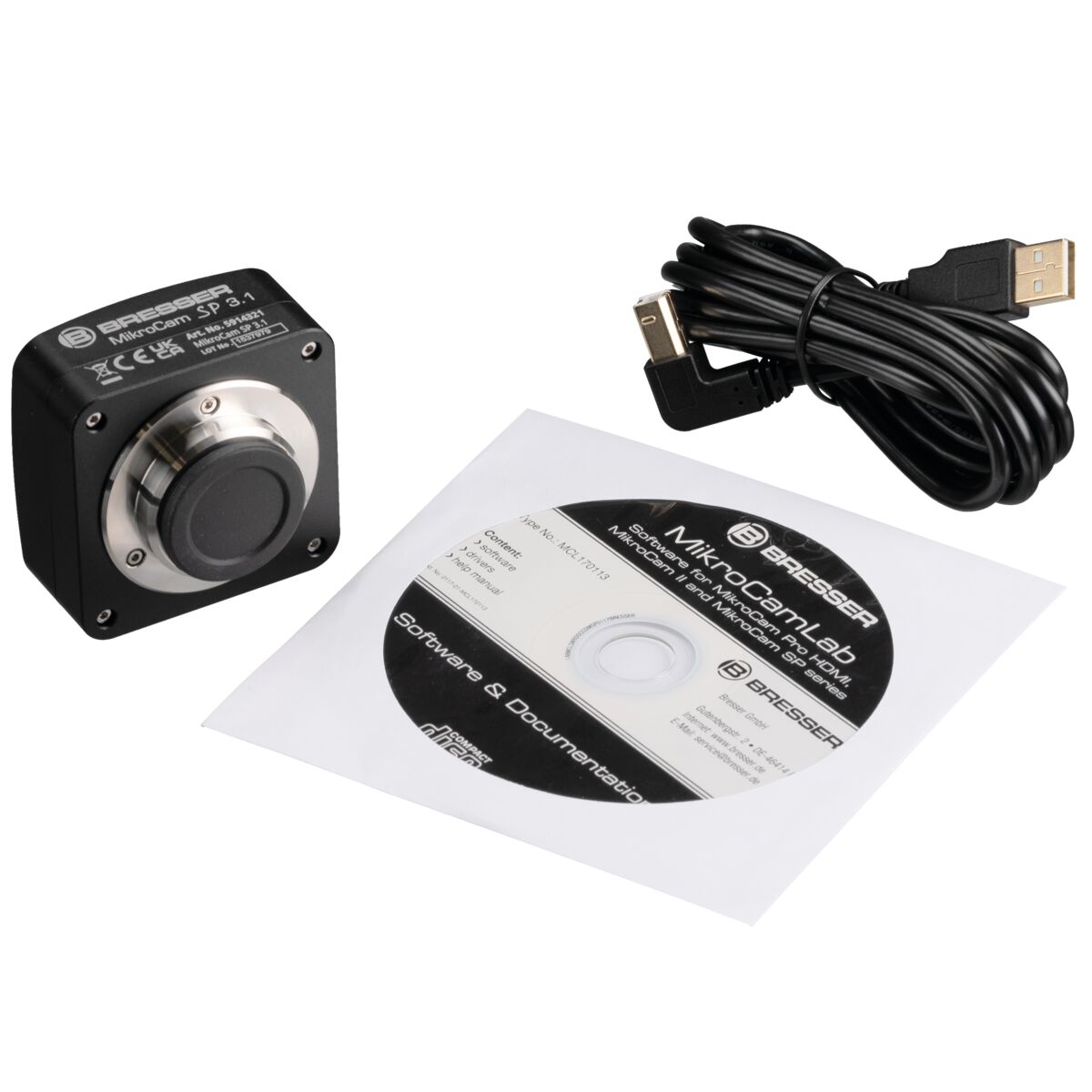

SCOPE OF DELIVERY

Camera head
USB 2.0 cable (approx. 1.8 m)
Adapters for 23.2 mm, 30 mm and 30.5 mm eyepiece holders
Capture and image processing software

Technical Data

ELECTRONICS, HARDWARE & SOFTWARE
Data transmission	USB 2.0
Resolution	2048 x 1536 Pixels (3.0 MP)
Sensor type	CMOS Color
Pixel size (µm)	3.2 x 3.2
Active area	6.6 x 4.9
Image File Formats	jpg
Video Formats	AVI MP4 (Codec: H.264)
GENERAL TECHNICAL DATA
Colour	black
Material	Aluminium
DIMENSIONS & WEIGHTS
Total length	58 mm
Width total	58 mm
Total height	37 mm
Net weight (w/o accessories)	175 g
